This page is a how-to for using the printrbot at the Dayton Diode hackerspace.  It covers general things about 3D printing and also specific things about how our printrbot is installed and set-up.

How to Use the Dayton Diode Printrbot[edit | edit source]

RepRap Toolchain: http://objects.reprap.org/wiki/RepRap_CAM_Toolchains

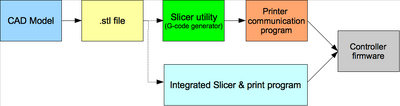

There is a good intro FAQ on the MAKE:blog.  Here's the basic work-flow:

  1. Design or download (e.g. MrJaws on thingiverse) a part (needs to be in stl format).
  2. Slice the stl and generate gcodeSlic3r is a popular option.
  3. Load the gcode to the printer management software.  We have pronterface.
  4. Warm up the bed (110 C) and the extruder (230 C).
  5. Print.

NOTE: There seems to be a problem with the thermal senser on the bed. This sometime causes pronterface to never start printing because it thinks the bed is not to temp. A workaround is to manually edit the gcode compiled by slicer. Open the gcode in a text editor and delete the line that says "wait for bed temp". It should be in the top 20 lines or so.

Printrbot Station


Our "print station" has a computer with all of the software that you will need already installed.

Design[edit | edit source]

Demo design step with free open source software.

Here's a sketch of an auto-transformer enclosure [XXX sketch here XXX].  We will demonstrate how to model this in several free open source tools.

Photos and Point Clouds as Modeling Aids[edit | edit source]

Take a bunch of pictures of the thing you want to model.  Then use open source tools such as Bundler and PVMS-2 to create a point cloud from the multiple views.  This point cloud can then be imported in to your drawing program to aid your modeling efforts.

Daytondiode_variable_transformer

Daytondiode variable transformer

Dense point cloud constructed from photographs

Blender[edit | edit source]

How to w/blender.

FreeCAD[edit | edit source]

How to w/FreeCAD.

BRLCAD[edit | edit source]

How to w/BRLCAD.

OpenSCAD[edit | edit source]

How to w/OpenSCAD

Slice[edit | edit source]

Slice the stl file with Slic3r.  Detail settings for our printer.

Print[edit | edit source]

Print the file using pronterface.
